Harfington DC12V 5Way 2 Position 1/8" PT,Pneumatic Air Control Solenoid Valve,Internally Single Piloted Acting Type, Silver Tone,4V110-06

DC12V 5Way 2 Position 1/8" PT,Pneumatic Air Control Solenoid Valve,Internally Single Piloted Acting Type, Silver Tone,4V110-06

ID:
AU$30.67 Regular price
AU/
About this item

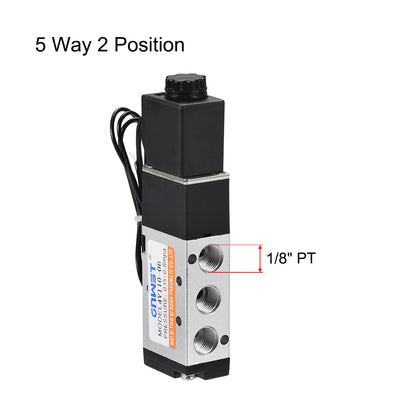

  • 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type: 5 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/8" PT ; Air Flow In Hole Size : 1/8" PT
  • 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
  • 【APPLICATION】 - Single Electrical Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
  • 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【UNIVERSAL DESIGN】 - Pneumatic Solenoid Valve Type: 5 Port 2 Position ; Voltage : DC 12V ; Exhaust Hole size: 1/8" PT ; Air Flow In Hole Size : 1/8" PT
  • 【ATTENTION】- Please pay attention to the direction of gas flow and the correct connection when installing. Pay attention to dustproof. It is recommended to install a muffler on the exhaust port.
  • 【APPLICATION】 - Single Electrical Control Valve Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.
  • 【ADVANTAGE】 - Air Solenoid Valve hasHigh frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation
  • 【 MATERIAL】 - The electromagnetic valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Specification:

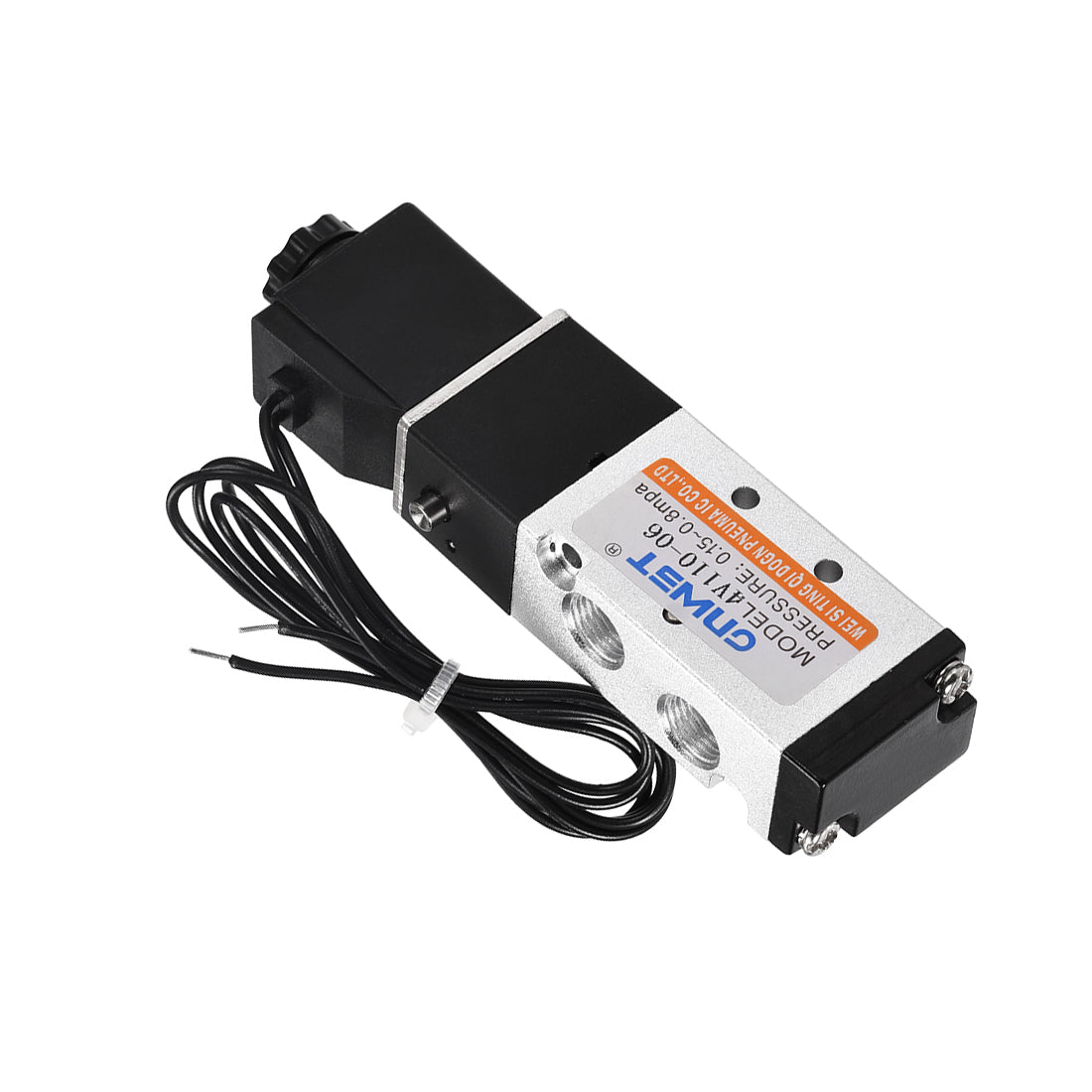

Model: 4V110-06

Net Weight: 103g

Color : Black,Silver Tone

CV values: 0.67

Voltage : DC 12V

Valve Type: 5 Port 2 Position

Mounting hole Size : 3.5mm / 0.16"

Exhaust Hole size: 1/8" PT

Air Flow In Hole Size : 1/8" PT

Wire Length : 40cm / 15.75"

Wiring Form: Direct Lead Wire

Seal material: NBR

Main parts material: Aluminum alloy

Working pressure: 0.15~0.8mpa (21~114 psi)

Operating temperature: -5~60 Degree Celsius

Total Size : 28 x 18 x 102mm /1.1" x 0.71" x 4" (L x W x H)

 Package Included:1 x Solenoid Valve



Description:

1.The strength of the aluminum alloy valve body is large. The valve body is made of new aluminum alloy material, which has strong pressure resistance,good corrosion resistance and fast heat dissipation.

2. sealing ring. seals for durability and longer life

3.High precision valve stem. Imported lubricants to ensure lubrication and reduce friction during exercise

4.High frequency sub-head. Made of conductor material with 6 times in 1 second high intensity and high frequency response for smoother operation

5.The coil is easy to disassemble. Removable core nut, coil damage can be replaced at any time

6. electronic components. The copper coil can work hard for a long time, the wiring operation is simple Direct Lead Wire.

7.Used for controlling pilots or diaphragms of larger valves or small cylinders or any pressure system that is alternatively pressurized and exhausted.



Note:

1.The manual button tests the status of the product when it is powered up

2.When the valve is not energized, p on the product map points to A is normally open, and B points to S is normally closed.

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
