Harfington Chamfer Router Bit 60 Degree 1/2" Shank 11mm Cutting Height, Carbide Tipped Edge Bevel Forming Tool for Woodworking, 27.3mm Cutting Dia

Chamfer Router Bit 60 Degree 1/2" Shank 11mm Cutting Height, Carbide Tipped Edge Bevel Forming Tool for Woodworking, 27.3mm Cutting Dia

ID:
AU$15.54 Regular price
AU/
About this item

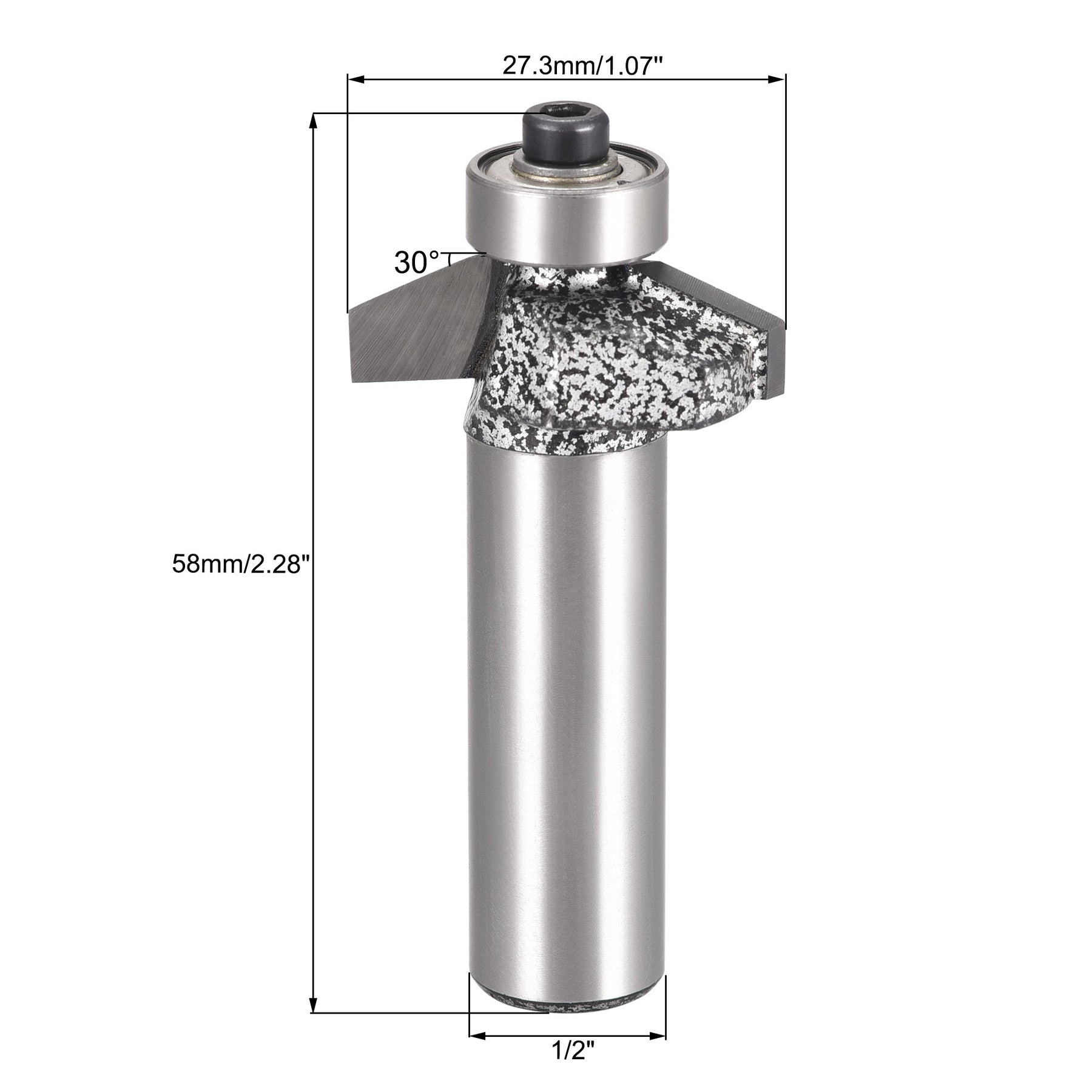

  • Shank Dia: 1/2", Cutting Height: 11mm/0.43"', Cutting Dia: 27.3mm/1.07'', Overall Length: 58mm/2.28", Angle: 60 Degree.

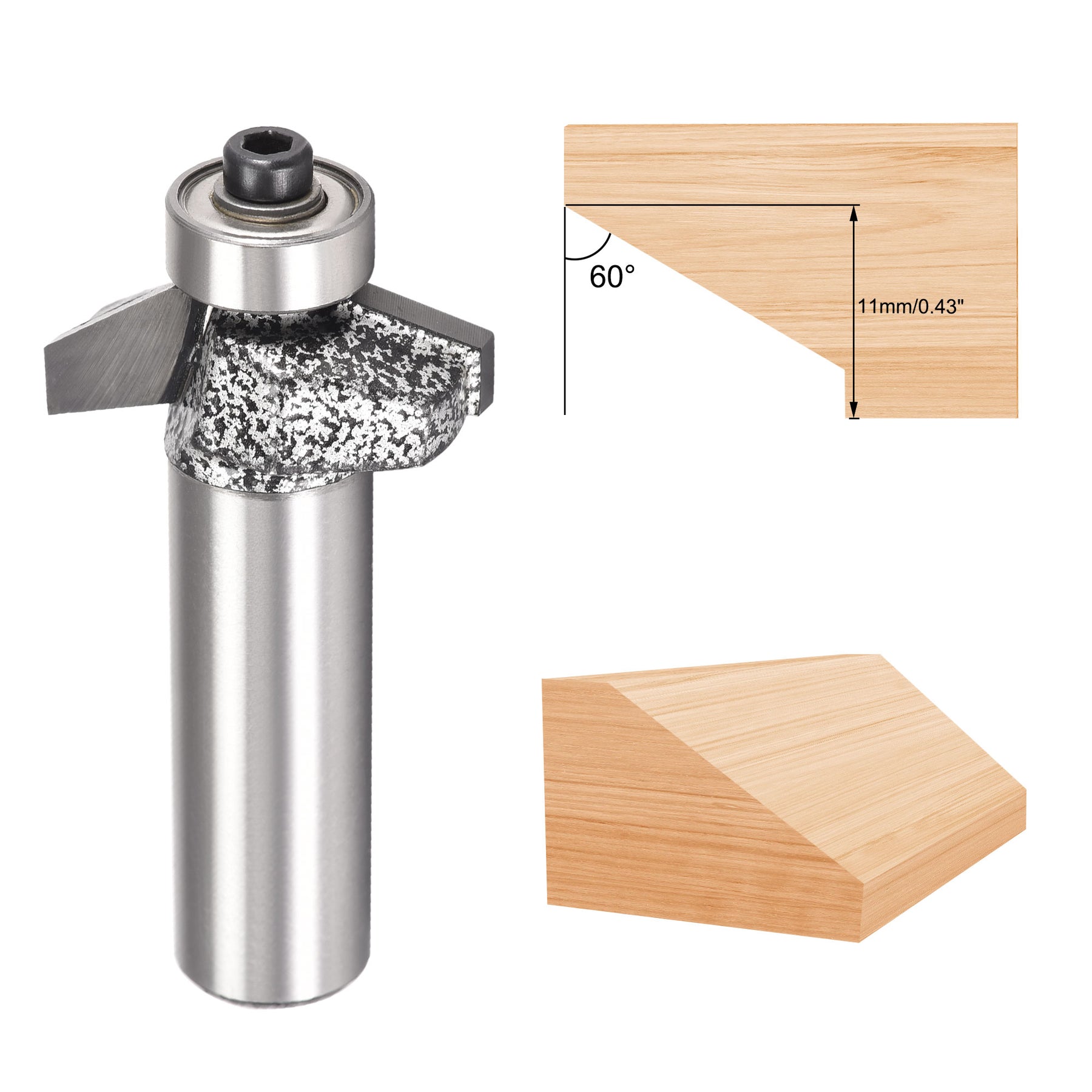

  • Used to cut 60 degree chamfers on the workpiece, the carbide (tungsten steel) cutter bit can make smooth and clean surface. The bearing guide can be replaced.
  • Suggested feed rate: 8-12m/min, suggested spindle speed: 18000-24000RPM. The larger the tool diameter, the smaller the spindle speed should be.
  • Applicable equipment includes trimmer, hand router, table router and palm router.
  • Suitable for trimming softwood, hardwood, oak, pine boards, shaving board, plywood, MDF.
  • In stock, ready to ship
Cart
Cart
About this item
  • Shank Dia: 1/2", Cutting Height: 11mm/0.43"', Cutting Dia: 27.3mm/1.07'', Overall Length: 58mm/2.28", Angle: 60 Degree.
  • Used to cut 60 degree chamfers on the workpiece, the carbide (tungsten steel) cutter bit can make smooth and clean surface. The bearing guide can be replaced.
  • Suggested feed rate: 8-12m/min, suggested spindle speed: 18000-24000RPM. The larger the tool diameter, the smaller the spindle speed should be.
  • Applicable equipment includes trimmer, hand router, table router and palm router.
  • Suitable for trimming softwood, hardwood, oak, pine boards, shaving board, plywood, MDF.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Features:
Suitable for cutting solid woods, MDF, plywood, shaving board, and ecological board.
Applicable equipment: trimmer, router, electric-wood milling, handheld gong machine.
Used to create a uniform chamfer on the edge, while retaining crisp geometric lines, to add characters to any workpiece.
Woodworking milling cutters are designed for portable and desktop woodworking engraving machines especially.
Cannot be used on machines such as electric drills and drill machines.
Please don't arbitrarily grind the props or change the shape of the knives, because professional grinding equipment and professional grinding techniques are required in every grinding process,  otherwise it will easily cause edge breakage and accidents.

Specifications:
Product Name: Edge Bevel Forming Router Bits
Angle: 60 degree
Shank Diameter: 1/2"
Cutting Diameter: 27.3mm/1.07''
Cutting Depth: 11mm/0.43"
Total Length: 58mm/2.28"

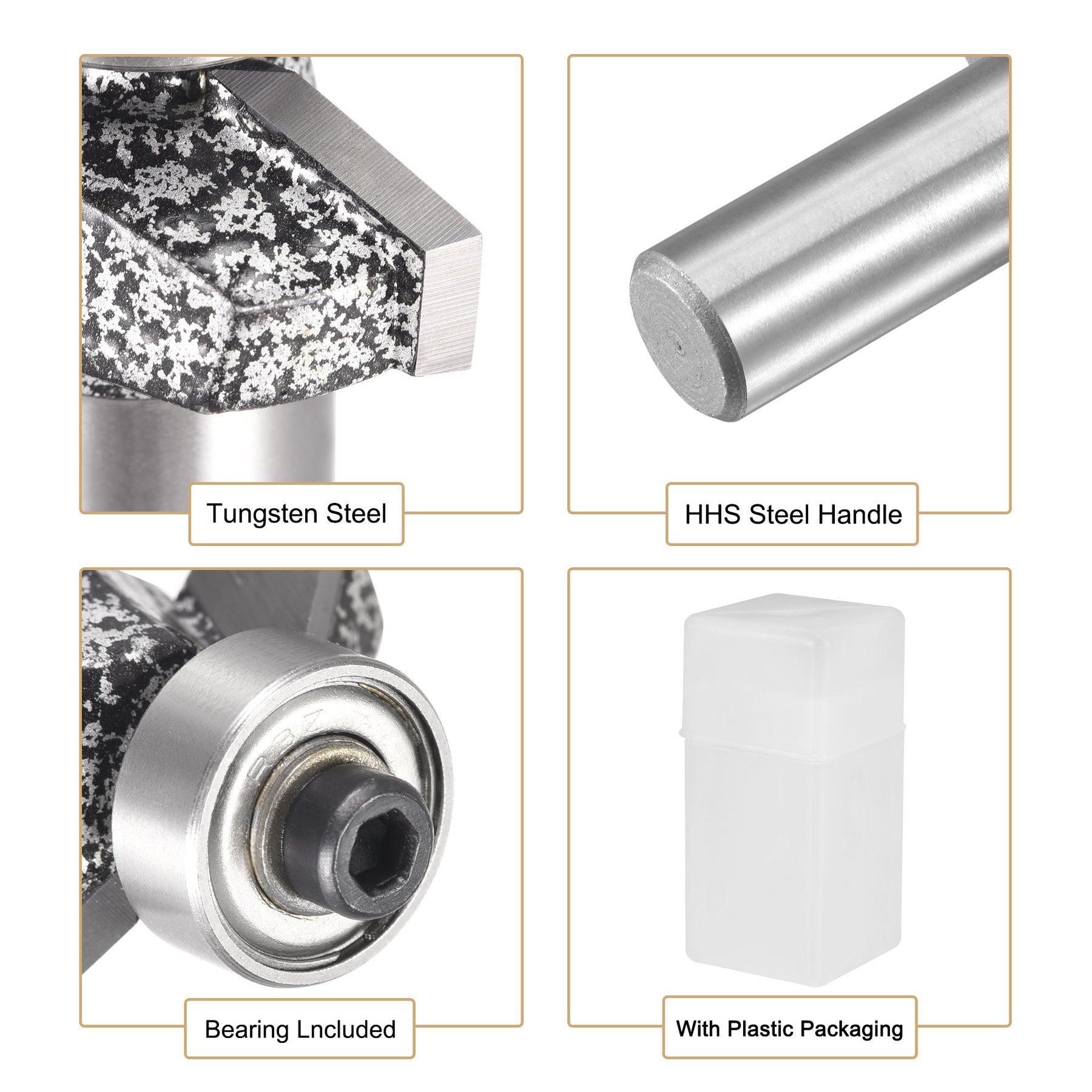

Blade Material: Tungsten steel
Shank Material: HSS

Package Content:
1 x Chamfer Bit
1 x Plastic Case

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
