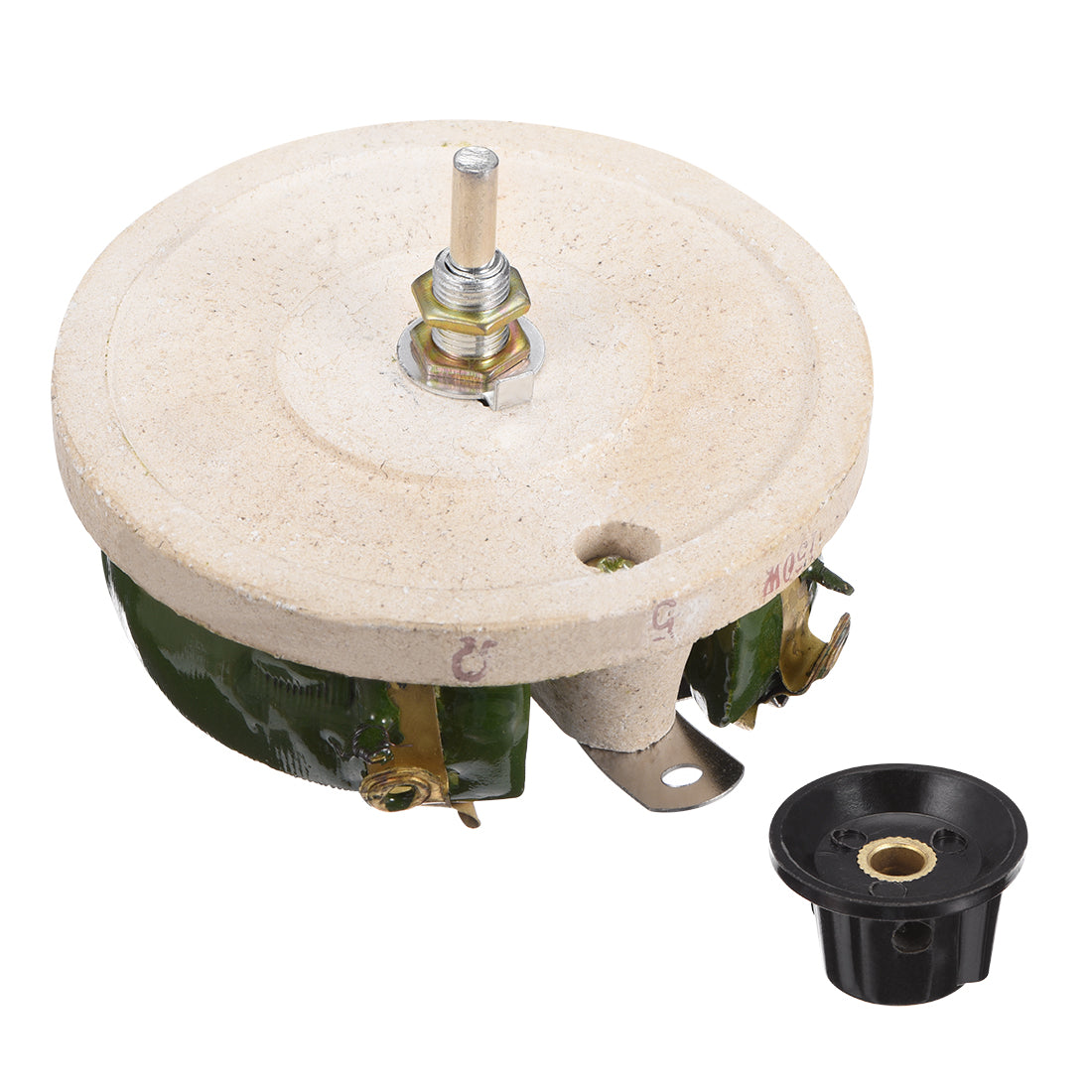

Harfington 150W 5R Ohm Wirewound Ceramic Potentiometer Variable Rheostat Resistor With Knob

150W 5R Ohm Wirewound Ceramic Potentiometer Variable Rheostat Resistor With Knob

ID:
AU$58.30 Regular price
AU/
About this item
  • Model: Variable Rheostat Wirewound Ceramic Potentiometer,can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.
  • Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations.
  • Resistance Value: 5R Ohm , Power:150W, Tolerance:+/-5%
  • Total Size: 104.5 x 80mm/ 4.12 x 3.15 inch (D * H)

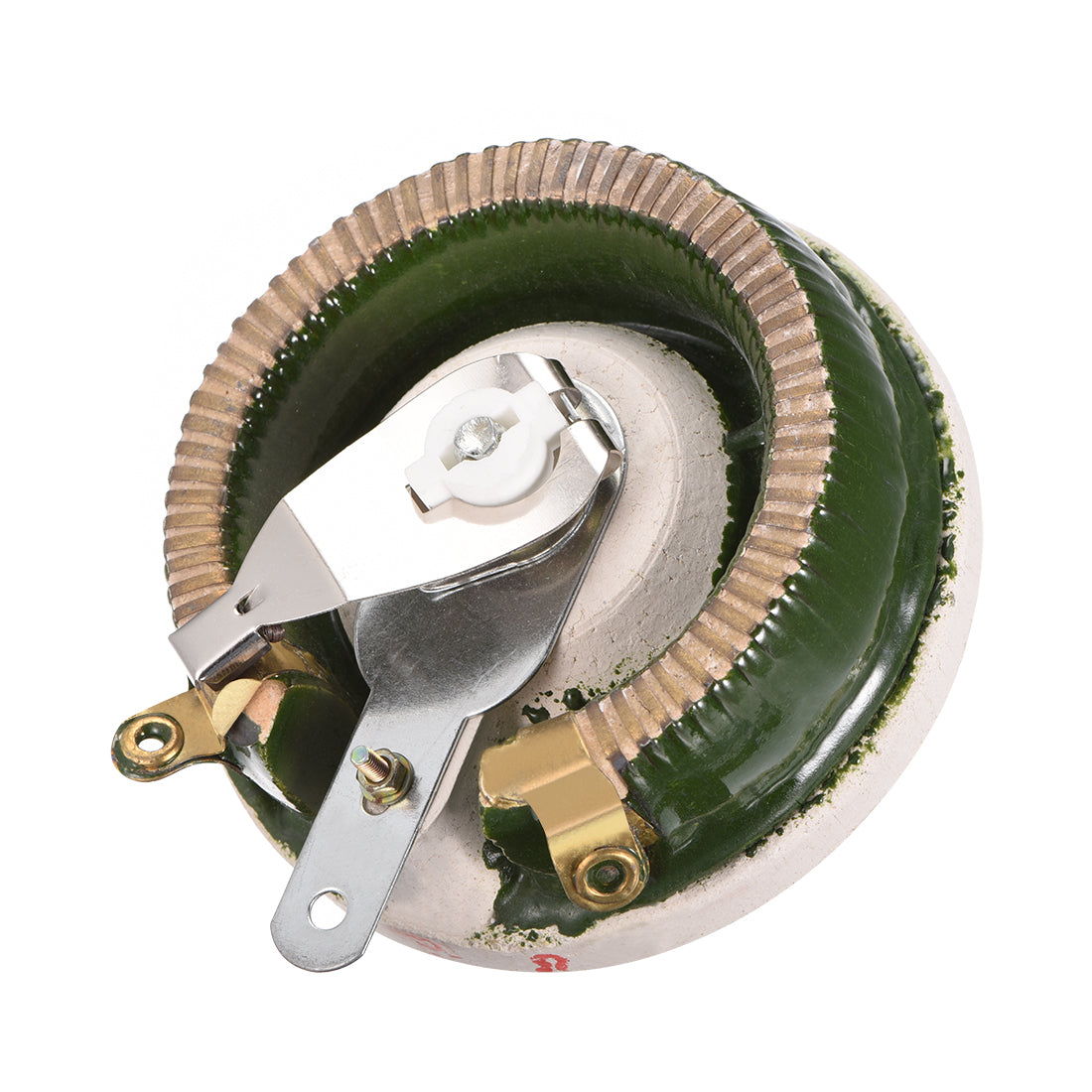

  • The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: Variable Rheostat Wirewound Ceramic Potentiometer,can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.
  • Widely used in educational modeling, load simulations, industiral machinery RPM adjustment, voltage and current adjustment, instruments, and automated control installations.
  • Resistance Value: 5R Ohm , Power:150W, Tolerance:+/-5%
  • Total Size: 104.5 x 80mm/ 4.12 x 3.15 inch (D * H)
  • The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
  • Product Name: Wirewound Ceramic Potentiometer
  • Resistance Value: 5R Ohm
  • Power:150W
  • Tolerance: +/-5%
  • Terminals Number: 3
  • Features: Round Shaft
  • Total Size: 104.5 x 80mm/ 4.12 x 3.15 inch (D * H)
  • Screw Thread Dia: 10mm/0.39 inch
  • Shaft Diameter: 6mm/0.23 inch
  • Shaft Length(do not include the Screw Thread parts): 15.7mm/0.62 inch
  • Shaft Total Length: 32mm/1.26 inch
  • Package Content: 1 x Wirewound Ceramic Potentiometer
  • Knobs Size: 18.8 x 30/ 0.74 x 1.18 inch(H*D)
  • 5R Ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item include Knobs)
  • Material:Ceramic Metal
  • Control the electrical resistance of a circuit without interrupting the flow of current.
  • The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.
  • Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
AU$58.30 Regular price
AU/
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20 Free upgraded to DHL over AU$300
By default, UPS or DHL or equivalent express delivery options will be selected, with an estimated delivery time of 4-7 days. Except for remote areas or extremely large volume products.

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

  • Product Name: Wirewound Ceramic Potentiometer
  • Resistance Value: 5R Ohm
  • Power:150W
  • Tolerance: +/-5%
  • Terminals Number: 3
  • Features: Round Shaft
  • Total Size: 104.5 x 80mm/ 4.12 x 3.15 inch (D * H)
  • Screw Thread Dia: 10mm/0.39 inch
  • Shaft Diameter: 6mm/0.23 inch
  • Shaft Length(do not include the Screw Thread parts): 15.7mm/0.62 inch
  • Shaft Total Length: 32mm/1.26 inch
  • Package Content: 1 x Wirewound Ceramic Potentiometer
  • Knobs Size: 18.8 x 30/ 0.74 x 1.18 inch(H*D)
  • 5R Ohm, 3 Terminals, Single Linear, Suits Most Standard Knobs.(this item include Knobs)
  • Material:Ceramic Metal
  • Control the electrical resistance of a circuit without interrupting the flow of current.
  • The rheostat is consisted of ceramic core and a resistive wire wrapped to form a toroid coil with a wiper axle.
  • Can be used widely as light dimmers and motor speed control, is applicable for arc lamps, pumps, fans and blowers, , model trains or other applications that require high voltage and current.
  • Knurled shaft with split design for push-on knob.



Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
