JSX1650-370 DC 6V 5RPM 6mm Shaft High Torque Turbine Worm Gear Box Reduction Motor

41027403677901
Questions & Answers |
£16.25 Regular price
/
About this item
  • Technical Specification: Rated Voltage: DC 6V;Gear Box No-load Speed: 5RPM; Rated Torque:3.5kg-cm(3lb-in); Motor Pins Numbe: 2.

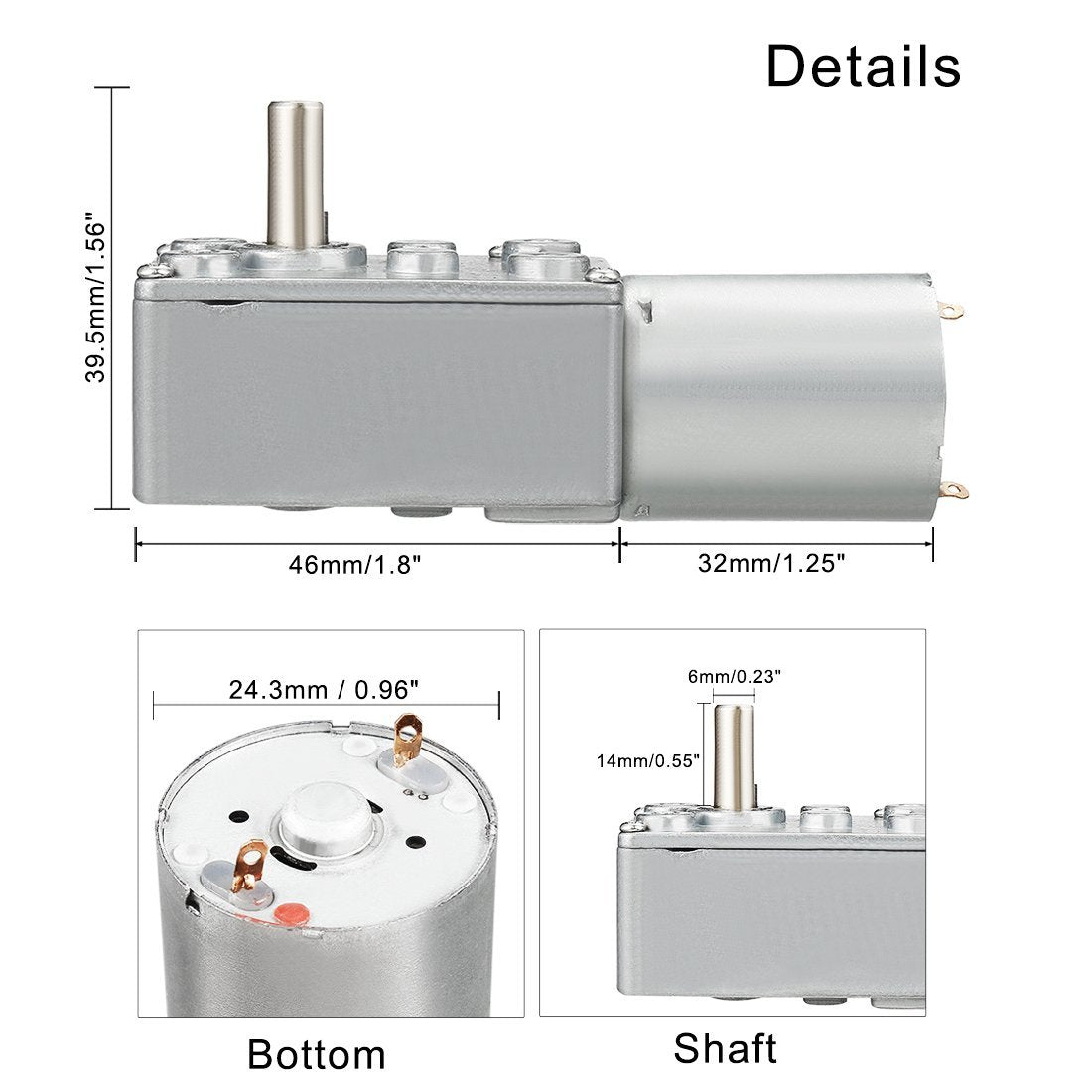

  • Size: Main Body: 78 x 31 x 25mm/ 3inch x 1.2inch x 1inch (L*W*H); Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L); Net Weight: 160g.
  • Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.
  • Output Shaft arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.
  • Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting.
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20
About this item
  • Technical Specification: Rated Voltage: DC 6V;Gear Box No-load Speed: 5RPM; Rated Torque:3.5kg-cm(3lb-in); Motor Pins Numbe: 2.
  • Size: Main Body: 78 x 31 x 25mm/ 3inch x 1.2inch x 1inch (L*W*H); Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L); Net Weight: 160g.
  • Feature - Gear DC Motor with Micro-Turbine Worm, change the motor rotation by changing the wiring-connection . With self-lock function, the output axis will be fixed when the motor is without electricity.
  • Output Shaft arranged vertically with the motor shaft and is relatively short, fit for different occasions that require special installation size.
  • Application: Label machines, remote control curtains, automatic voltage regulators, barbecue grills, ovens, washers, waste disposal machines, household appliances, coin machines, paper currency recognizers, automatic actuators, coffee machines, towel machines, printing machines and Stage lighting.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.
It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle.
It is widely used in various of ocns that require special install size.

Specifications:
Product Name: DC Motor
Model: JSX1650-370
Rated Voltage: DC 6V
Color: Silver Gray
Net Weight: 160g
Material: Metal
Gear Box No-load Speed: 5RPM
Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L)

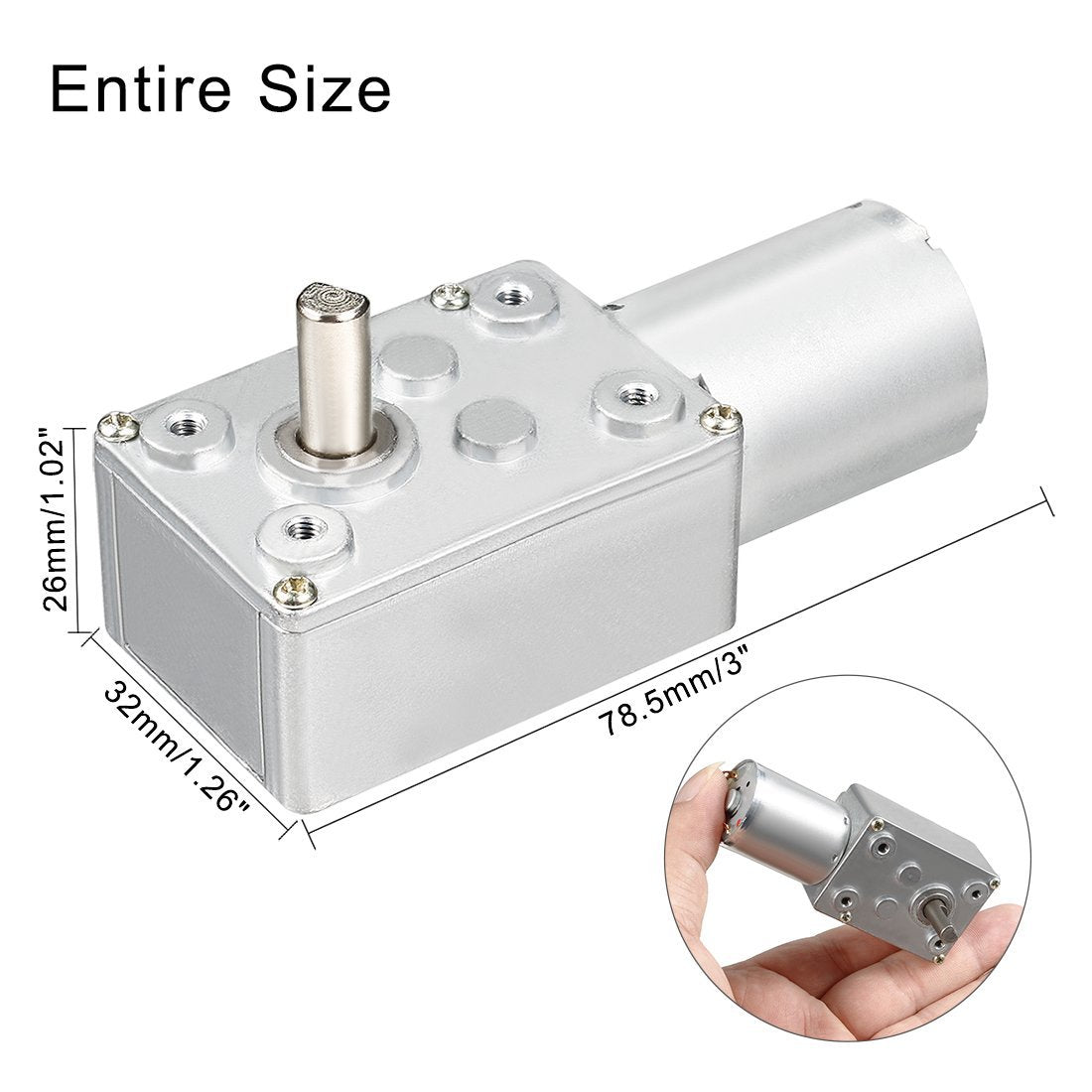

Main Body Size: 78 x 31 x 25mm (L*W*H)

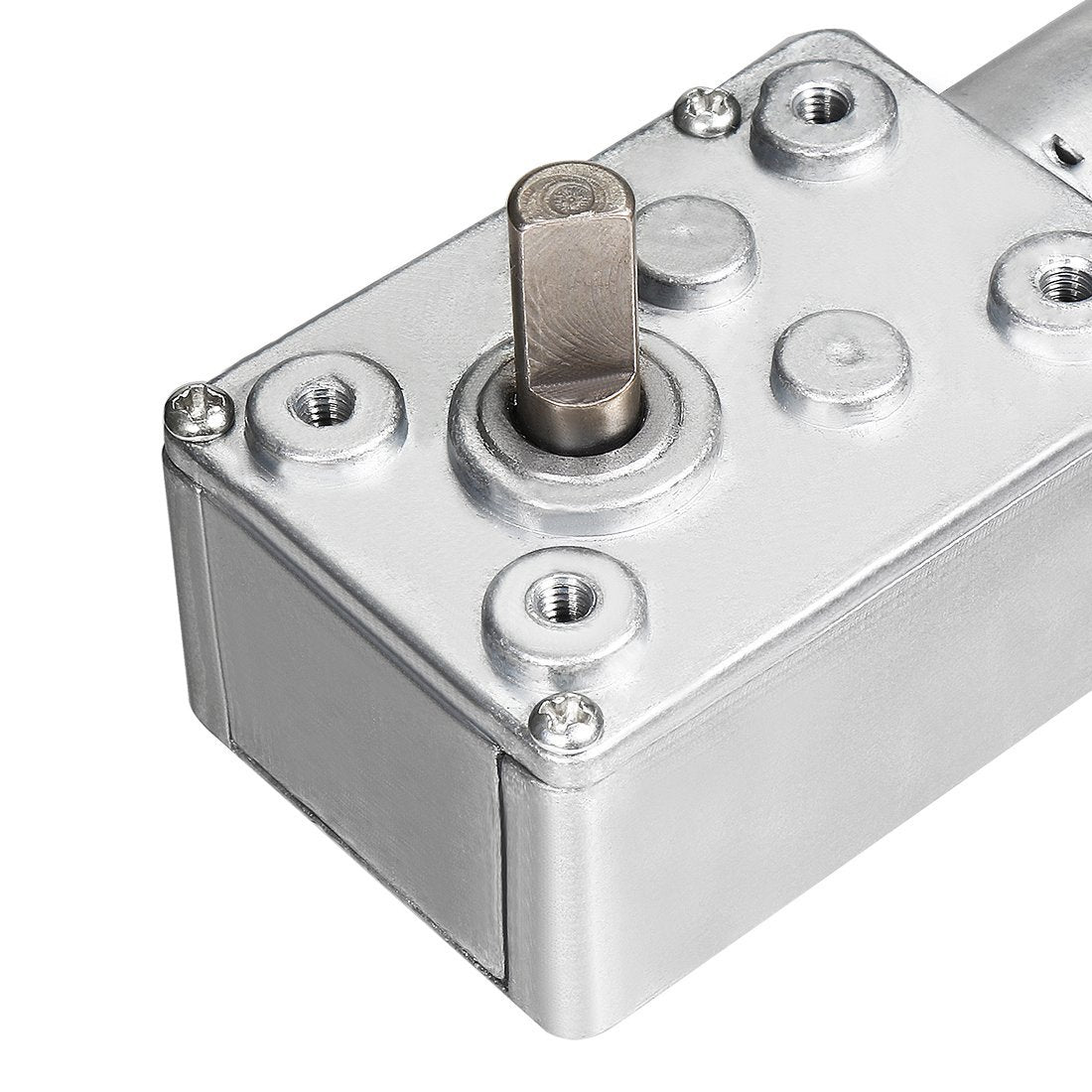

Shaft Shape: D shaped shaft
Motor Pins Numbe: 2

Package Contents:
1 x DC Motor
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Description

Description

Description:
This type is miniature Worm Gear DC Motor, which can change shaft rotation direction while the wiring positive and negative be changed.
It is also have addition two characteristics: first, With self-locking, the output shaft can not rotation when switch off, that is self-locking. Second, Gearbox output shaft and motor shaft are come to be a rectangle.
It is widely used in various of ocns that require special install size.

Specifications:
Product Name: DC Motor
Model: JSX1650-370
Rated Voltage: DC 6V
Color: Silver Gray
Net Weight: 160g
Material: Metal
Gear Box No-load Speed: 5RPM
Shaft Size: 6 x 14mm / 0.24inch x 0.31inch (D*L)
Main Body Size: 78 x 31 x 25mm (L*W*H)
Shaft Shape: D shaped shaft
Motor Pins Numbe: 2

Package Contents:
1 x DC Motor
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
