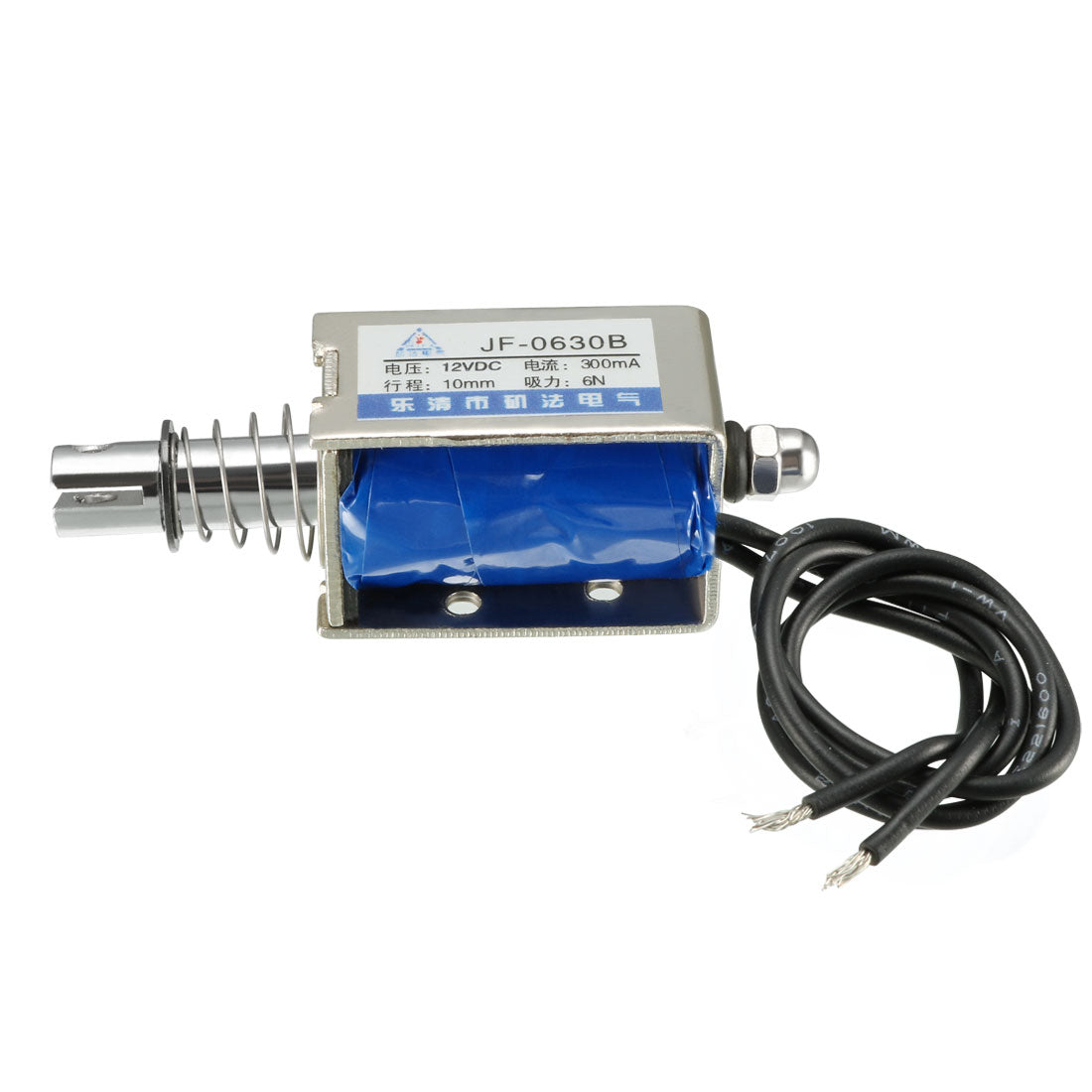

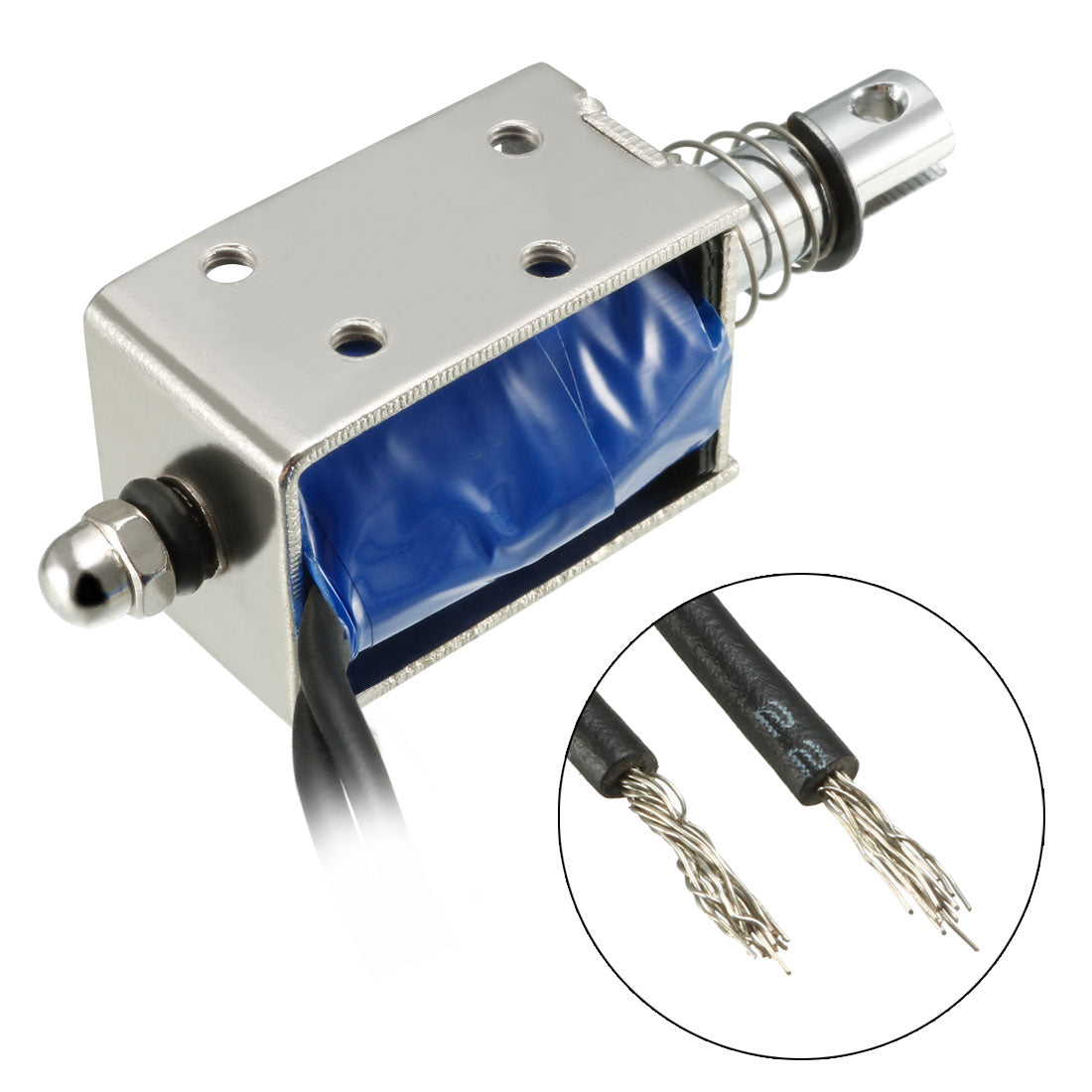

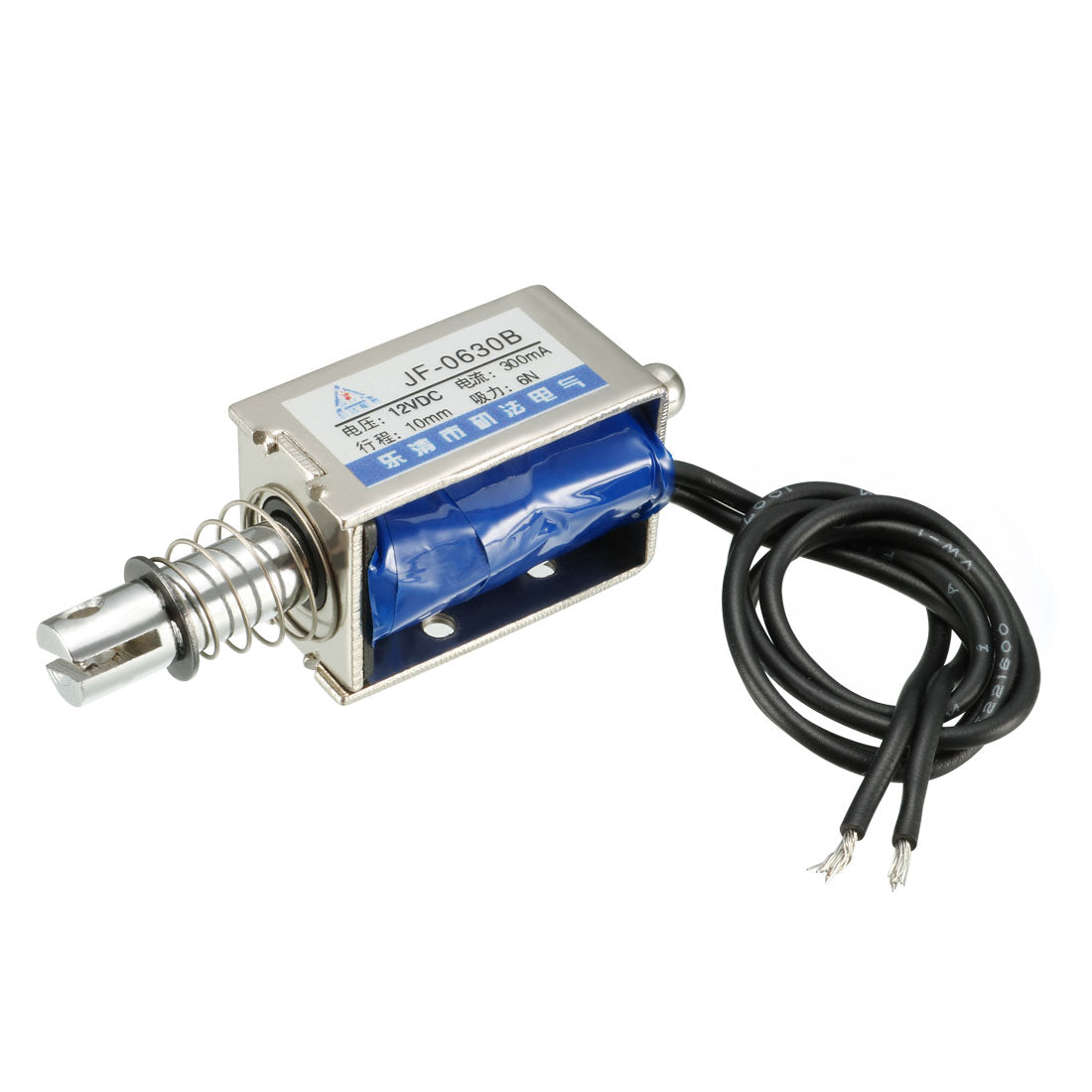

Harfington JF-0630B DC 12V 300mA 8.4W 6N 10mm Pull Push Type Linear Motion Solenoid Electromagnet

JF-0630B DC 12V 300mA 8.4W 6N 10mm Pull Push Type Linear Motion Solenoid Electromagnet

ID:
£8.04 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • 【FEATURE】- DC 12V 300mA 8.4W 6N Force 10mm Stroke Push Pull Solenoid Electromagnet
  • 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
  • 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
  • 【NOTED】- As an actuating element of anmation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
  • 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
  • In stock, ready to ship
Cart
Cart
About this item
  • 【FEATURE】- DC 12V 300mA 8.4W 6N Force 10mm Stroke Push Pull Solenoid Electromagnet
  • 【GOOD DESIGN】- Push pull Type, linear motion, open frame, plunger spring return, DC solenoid electromagnet.
  • 【ADVANTAGES】- Simple structure, small volume, high adsorption force.copper coil inside, has good temperature stability and insulation, high eelectrical conductivity
  • 【NOTED】- As an actuating element of anmation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.
  • 【APPLICATION】- DC solenoid electromagnet use in vending machines, transport equipment, office facility household appliance, mechanical, etc game machine,Sorting machine,door lock,etc.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Description:
1.Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
2.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.
3.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Specification:
Material :Metal
Force: 6N;
Travel: 10mm
Rated Voltage: DC 12V ;
Current: 300mA;
Power: 8.4W;
Cable Length: 190mm/7.48";

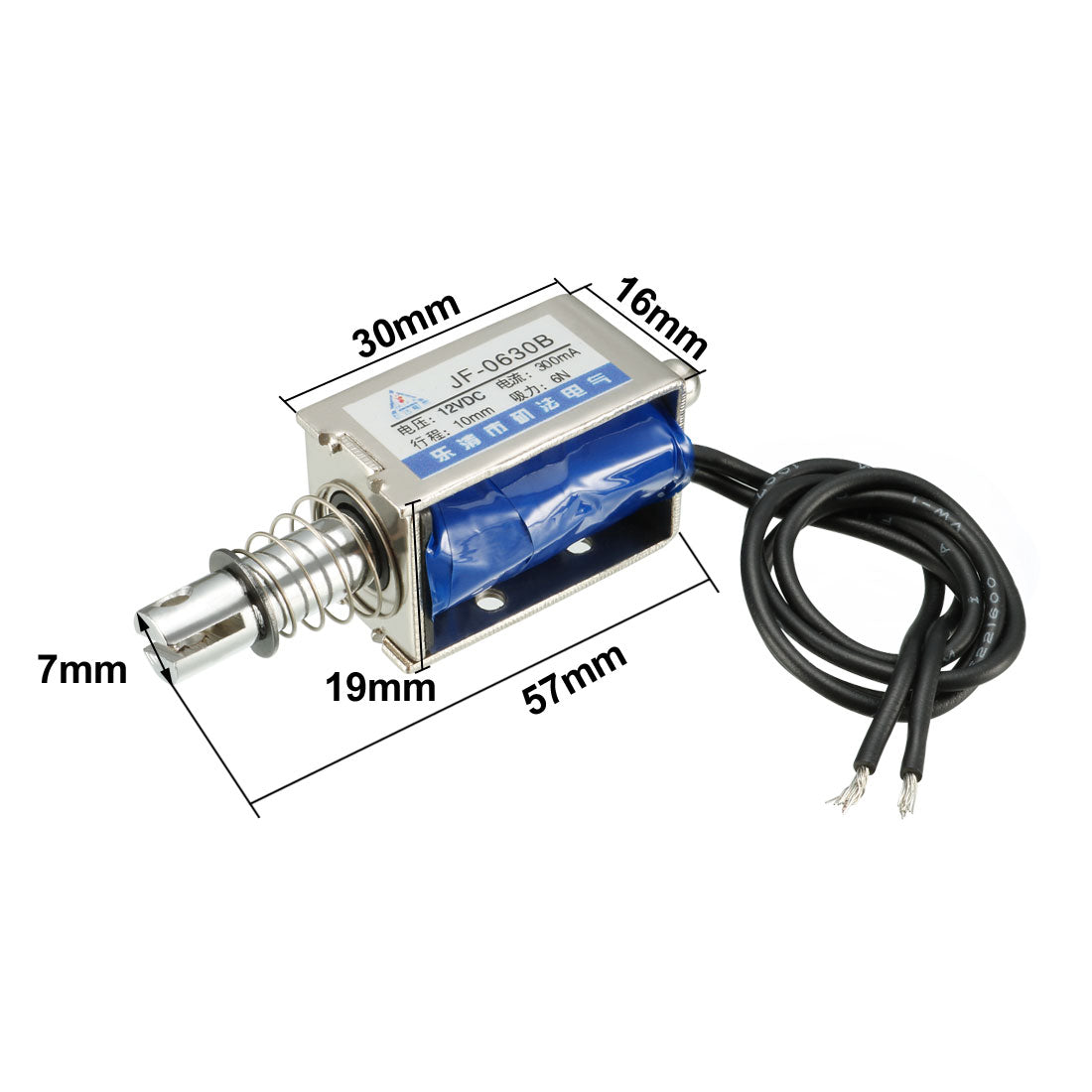

Total Length: 57mm/2.24";
Push Bar Dia: 7mm/0.28";
Mounting Hole Dia.: M3
Size: 30 x 16 x 19mm/1.18" x 0.63" x 0.75"(L*W*H)

Package Content:
1 x DC Solenoid Electromagnet

Note:
Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to damage the electromagnet.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
£8.04 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

Description:
1.Push pull Type, linear motion, plunger spring return, DC solenoid electromagnet.
2.Support DC 12V voltage, high power, pull push type, linear motion, is easy to install.
3.DC solenoid electromagnet mainly used in vending machines, transport equipment, office facility, household appliance, mechanical, etc.

Specification:
Material :Metal
Force: 6N;
Travel: 10mm
Rated Voltage: DC 12V ;
Current: 300mA;
Power: 8.4W;
Cable Length: 190mm/7.48";
Total Length: 57mm/2.24";
Push Bar Dia: 7mm/0.28";
Mounting Hole Dia.: M3
Size: 30 x 16 x 19mm/1.18" x 0.63" x 0.75"(L*W*H)

Package Content:
1 x DC Solenoid Electromagnet

Note:
Please pay attention:As an actuating element of an automation equipment ,because the current is large, the single cycle can not be electrified for a long time.The best operate time is in 2 seconds.If the operate time is too long,the electromagnet temperature will rise.Too high temperature can affect the life of the electromagnet.
Please take the electromagnet put down gently when you install it. The screw thread can make a corresponding change according to your demand. This product is small in size, please pay attention to in the process of using eelectricity, so as not to damage the electromagnet.
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
