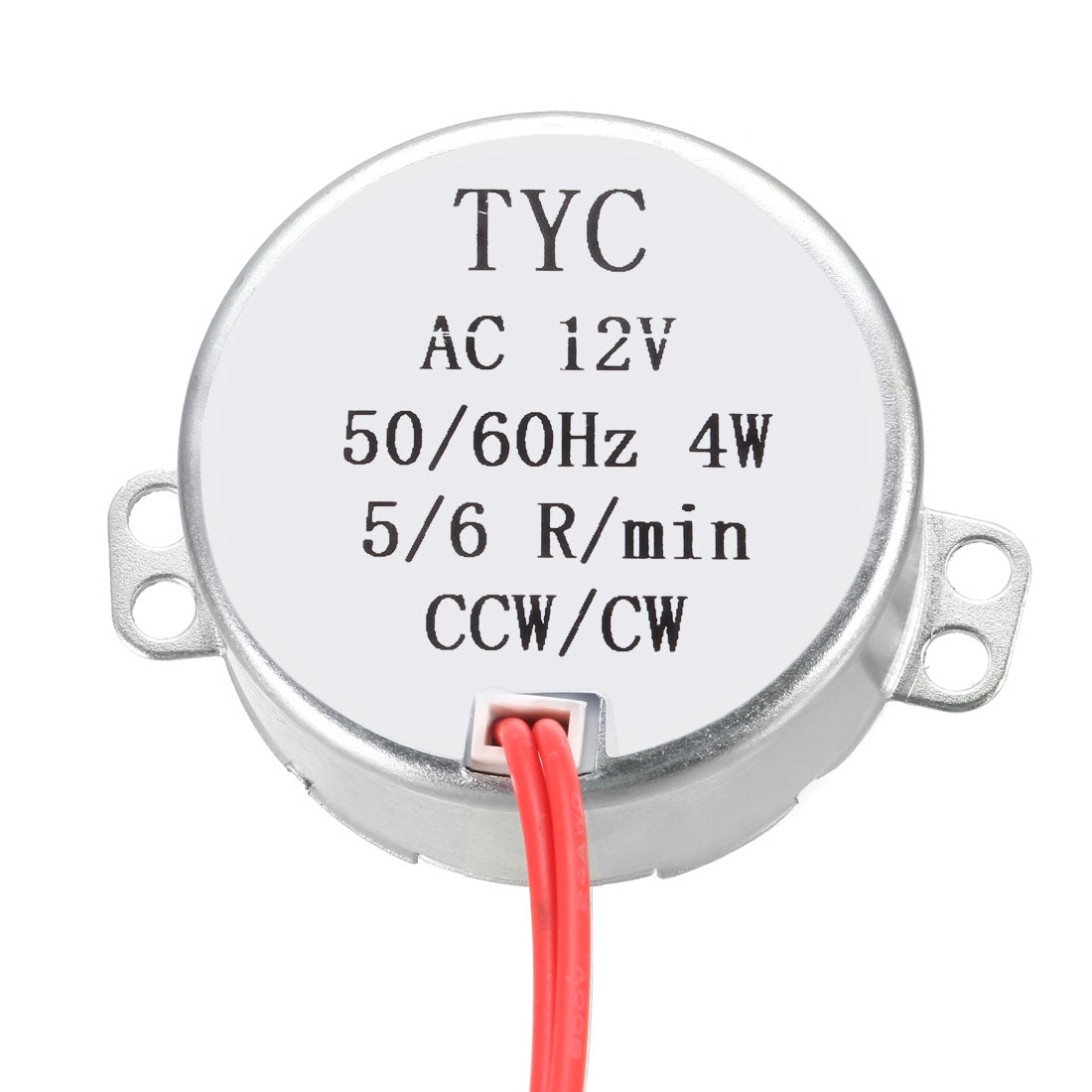

Uxcell Synchronous Synchron Motor AC 12V for Microwave Oven

52023624073583
Questions & Answers |
US$11.61 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
0.8-1RPM
Style
About this item
  • [Specification] - Voltage: AC 12V; Speed: 0.8-1RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 14kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - Christmas tree, air conditioner, electric fan, microwave oven, heater, turntable, etc.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20
About this item
  • [Specification] - Voltage: AC 12V; Speed: 0.8-1RPM; Frequency: 50-60Hz; Power: 4W; Direction: CW/CCW; Torque: 14kgf.cm; Wire Length: 40cm/ 15.7 inch.
  • [Typical Applications ] - Christmas tree, air conditioner, electric fan, microwave oven, heater, turntable, etc.
  • [Show Your Style] - An Good Motor For Hand-Made, DIY Project, Model And Anything Else You Want.
  • [Features] -AC motor is small power consumption, torque, low noise, small size, light weight, easy to use.
  • [Advantage] - The permanent magnet synchronous motor and the slowdown in one body can control the pros and cons of the synchronous motor.At rated frequency, the motor speed is not affected by voltage and remains stable. If the motor is overloaded or stalled, the motor coil will not burn.
Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.



Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.



Specification

Rated Voltage: AC 12V

Power: 4W

Manner of Working: CCW/CW

Rated Frequency: 50-60Hz

Rated Speed: 0.8-1RPM

Torque:14kgf.cm

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 12mm/ 0.47 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Description

Description

Description

It is mainly used for gluing machine,monitor, electrical curtain, stage lights, advertisement electrical movement, electrical apparatus and science and education instruments.



Information About Synchronous Motors

Advantage of using synchronous motor is the ability to control the power factor. An over excited synchronous motor can have leading power factor and can be operated in parallel to induction motors and other lagging power factor loads thereby improving the system power factor.

A synchronous motor is one in which the rotor normally rotates at the same speed as the revolving field.



Specification

Rated Voltage: AC 12V

Power: 4W

Manner of Working: CCW/CW

Rated Frequency: 50-60Hz

Rated Speed: 0.8-1RPM

Torque:14kgf.cm

Body Diameter: 50mm/ 1.96 inch

Body Height: 20mm/ 0.78 inch

Total Length: 65mm/ 2.55 inch

Mounting Hole Diameter: 4.5mm/ 0.17 inch

Shaft Diameter: 7mm/ 0.28 inch

Shaft Length: 12mm/ 0.47 inch

Wire Length: 40cm/ 15.7 inch

Package: 1 x AC Synchronous Motor

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
