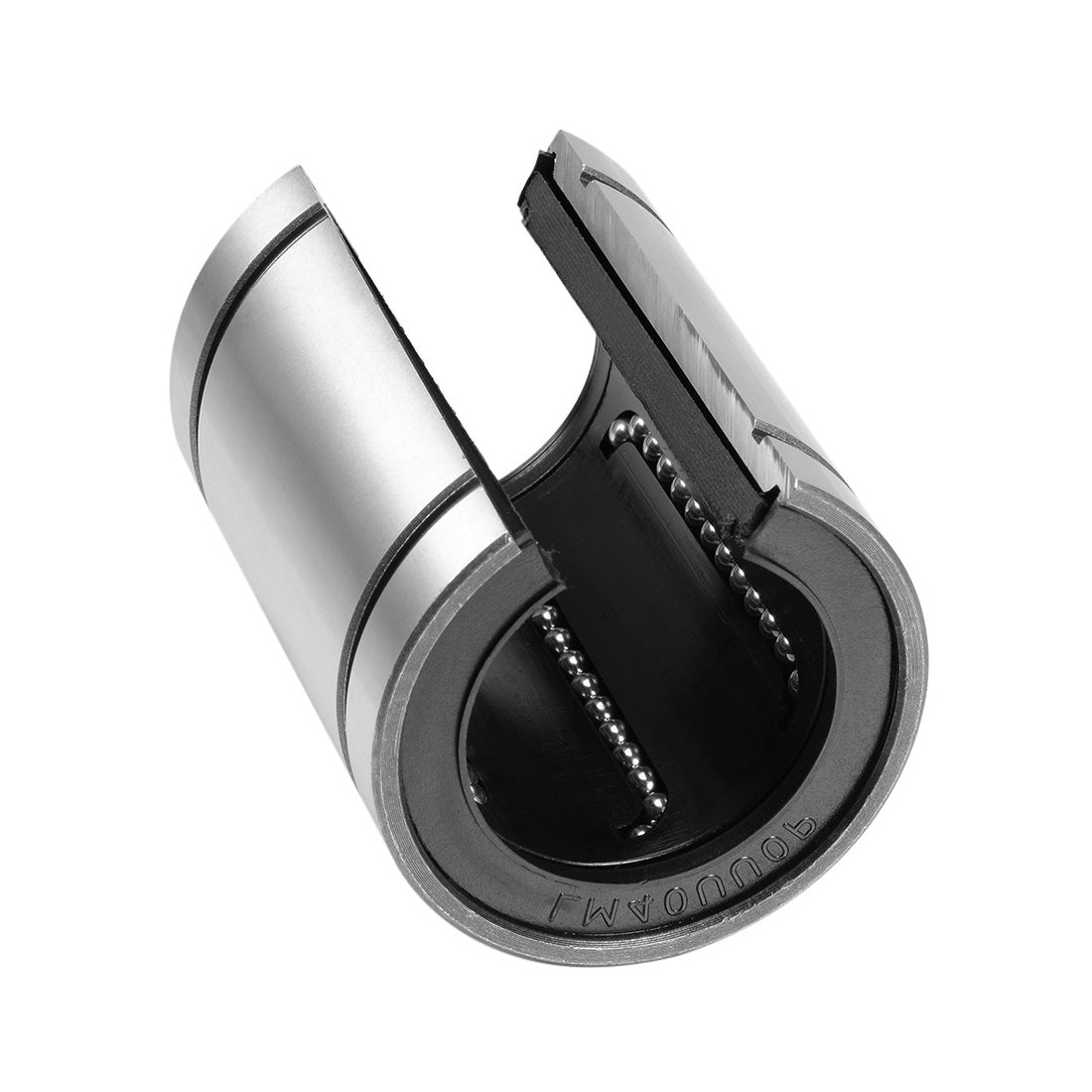

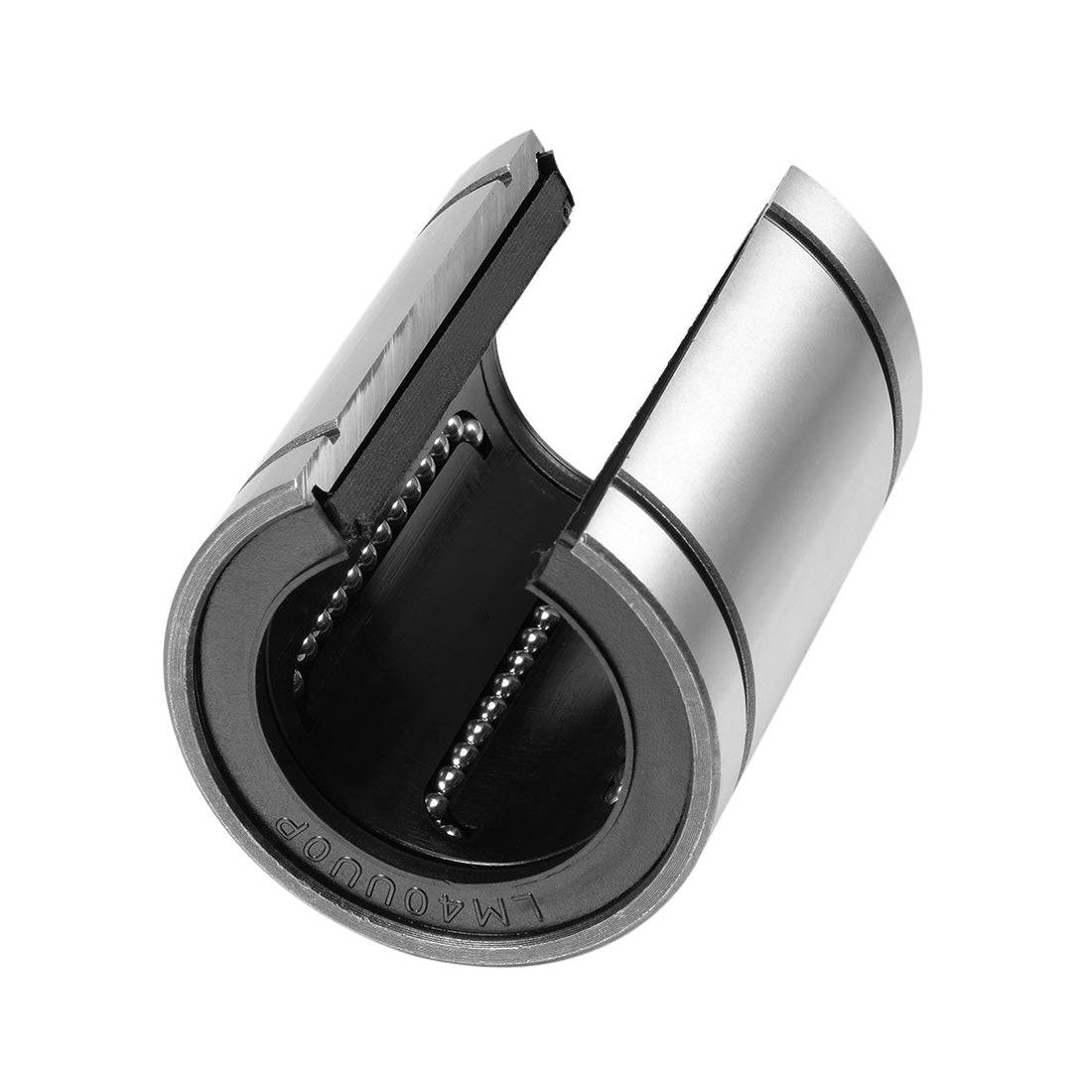

Harfington Uxcell LM40UUOP Linear Ball Bearings Open Type, 40mm Bore Dia, 60mm OD, 80mm Length 1Pcs

Uxcell LM40UUOP Linear Ball Bearings Open Type, 40mm Bore Dia, 60mm OD, 80mm Length 1Pcs

ID:
US$20.67 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Model: LM40UUOP (Nominal Shaft Diamter (dr): 40mm, Outer Diameter (D): 60mm, Total Length (L): 80mm)
  • Open Type Linear Motion Ball Bearing Bushing Sealed on Both Side
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitalbe for kinds of electronic equipment/guide bar, and pillar
  • In stock, ready to ship
Cart
Cart
About this item
  • Model: LM40UUOP (Nominal Shaft Diamter (dr): 40mm, Outer Diameter (D): 60mm, Total Length (L): 80mm)
  • Open Type Linear Motion Ball Bearing Bushing Sealed on Both Side
  • Chromium Steel shell and bearing ball, good abrasion resistance, high precision and good strength
  • Smooth moving, low friction, high rigidity and long working life
  • Suitalbe for kinds of electronic equipment/guide bar, and pillar
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

1.provides LMUUOP series Open Type Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM40UUOP

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

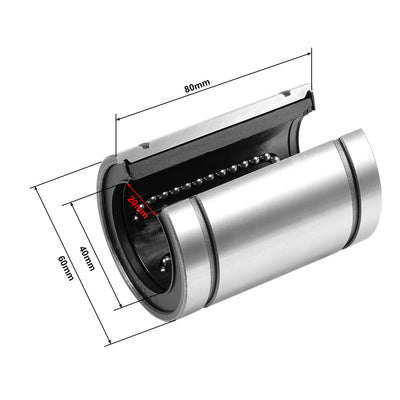

Nominal Shaft Diamter (dr): 40mm

Outer Diameter (D): 60mm

Total Length (L): 80mm

Opening Width (h1): 20mm

Opening Angle: 50 Degree

Ball Circuit: 5

Static Load Capacity (Cor): 4.02kN

Dynamic Load Capacity (Cr): 2.16kN

Number of Pack: 1 Pcs
