Harfington Uxcell LM35UU Linear Ball Bearings 35mm Bore 52mm OD 70mm Length for CNC 3D Printer

Uxcell LM35UU Linear Ball Bearings 35mm Bore 52mm OD 70mm Length for CNC 3D Printer

ID:
US$15.89 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • [SIZE] - Model: LM35UU, 35x52x70mm Metric Double Seal Linear Bearing
  • [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways.
  • [FEATURES] - These ball bearing with two rubber dust sealed to prevent ingress of dirt, water and foreign matter
  • [CAPABILITY] - Static Load Capacity (Cor): 1670N, Dynamic Load Capacity (Cr): 3140N (Recommended load is 80% of rated load, not to exceed rated load.)
  • [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, ect.
  • In stock, ready to ship
Cart
Cart
About this item
  • [SIZE] - Model: LM35UU, 35x52x70mm Metric Double Seal Linear Bearing
  • [USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways.
  • [FEATURES] - These ball bearing with two rubber dust sealed to prevent ingress of dirt, water and foreign matter
  • [CAPABILITY] - Static Load Capacity (Cor): 1670N, Dynamic Load Capacity (Cr): 3140N (Recommended load is 80% of rated load, not to exceed rated load.)
  • [APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, ect.
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:

1.provides LMUU series Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM35UU

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

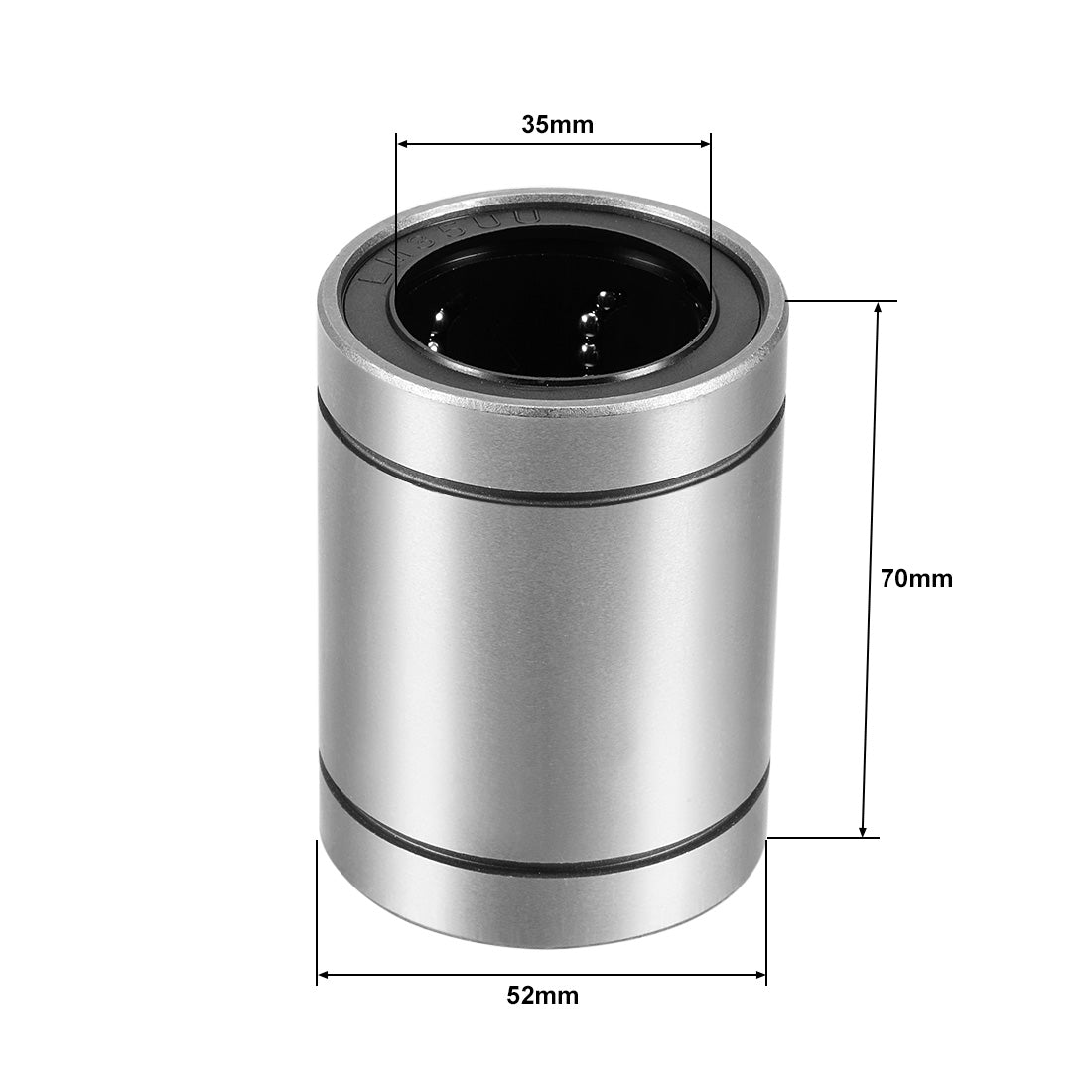

Nominal Shaft Diamter (dr): 35mm

Outer Diameter (D): 52mm

Total Length (L): 70mm

Ball Circuit: 6

Static Load Capacity (Cor): 3.14kN

Dynamic Load Capacity (Cr): 1.67kN

Number of Pack: 1 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
US$15.89 Regular price
US/
Wholesale Price
20%OFF
Order $5000+
  • 20%OFF
    Order $5000+
  • 15%OFF
    Order $2000+
  • 10%OFF
    Order $800+
  • 7%OFF
    Order $500+
  • 5%OFF
    Order $200+
  • In stock, ready to ship
Cart
Cart
Free Shipping over $20

Product Variants

Products Title ID Price Qty
Products Title ID Price Qty
Qty: {[total.qty]} Item(s)
Total Price: {[handleCurrency(total.price*100)]}
View more

Description

Description

1.provides LMUU series Linear Ball Bearing with seals on both side to prevent ingress of dirt, water and foreign matter.

2.Linear Motion Bearing (also called Ball Bushing or Shaft Guiding) is a rolling friction supporting element that usually used for linear motion mechanical parts with small friction.

3.Coordinate with Linear Motion Shaft, recirculating balls provide unlimited stroke at low friction movement, permit temperature within 80 degree Celsius.

4.It is great for 3D printer, CNC, and other applications.





Specification:

Bearing No.: LM35UU

Bearing Ball Meterial: Chromium Steel

Outer Shell Meterial: Chromium Steel

Cage Meterial: Nylon

Nominal Shaft Diamter (dr): 35mm

Outer Diameter (D): 52mm

Total Length (L): 70mm

Ball Circuit: 6

Static Load Capacity (Cor): 3.14kN

Dynamic Load Capacity (Cr): 1.67kN

Number of Pack: 1 Pcs

Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
