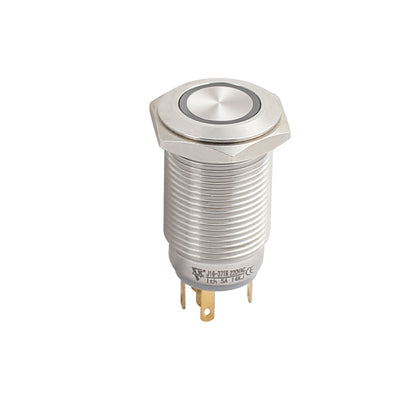

Harfington 16mm Dia Flat Cap Latching Stainless Steel Metal Push Button Switch Red Light

16mm Dia Flat Cap Latching Stainless Steel Metal Push Button Switch Red Light

ID:
$8.95 Regular price
/
Wholesale Price
35%OFF
Order $5000+
  • 35%OFF
    Order $5000+
  • 25%OFF
    Order $2000+
  • 15%OFF
    Order $800+
  • 10%OFF
    Order $500+
  • 5%OFF
    Order $200+
About this item
  • Oeperation Type: Latching; Contact Type: 1NO+1NC; Current: 5A; Voltage: AC 250V;Install Style: PCB Type with Light
  • Material: Stainless Steel, Plastic, Electric Parts; Net Weight: 16g; Total Size: 35 x 21mm/1.37" x 0.82"(L*Max.D)
  • Light Color: Red; Main Color: Silver Tone; Cap Type: Flat; Terminal Quantity: 5;Light Power: AC 220V;Thread Diameter: 16mm
  • Operating Temperature: -25C to +55C; Operating Humidity: 45 to 85%RH;Protection Rating: IP67
  • Contact Resistance: 50Mohm Maximum; Insulation Resistance: 100Mohm Minimum; Package Content: 1 x Metal Button Switch
  • In stock, ready to ship
Cart
Cart
About this item
  • Oeperation Type: Latching; Contact Type: 1NO+1NC; Current: 5A; Voltage: AC 250V;Install Style: PCB Type with Light
  • Material: Stainless Steel, Plastic, Electric Parts; Net Weight: 16g; Total Size: 35 x 21mm/1.37" x 0.82"(L*Max.D)
  • Light Color: Red; Main Color: Silver Tone; Cap Type: Flat; Terminal Quantity: 5;Light Power: AC 220V;Thread Diameter: 16mm
  • Operating Temperature: -25C to +55C; Operating Humidity: 45 to 85%RH;Protection Rating: IP67
  • Contact Resistance: 50Mohm Maximum; Insulation Resistance: 100Mohm Minimum; Package Content: 1 x Metal Button Switch
Specification

Specification

Inquiry submitted successfully
We will reply within 24 hours during work time. If you haven't received the reply by then, please check your spam. Thank you!
Payments will be processed via the website or Stripe payment link. Please note that domain contact emails other than @harfington.com should not be trusted.
Product Description:
Notice:
Rated IP67 waterproof.These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater.

Main application:
Furniture,hotel equipment,cleaning equipment,audio equipment,industrial equipment,lighting engineering,building models,access control system,car,motorcycle,balance electric scooter,computers,coffee machines,juicers etc.

Specificatios:
Mounting Thread Dia: 16mm
Operation Type: Latching
Switch Contact: 1NO+1NC
Pole and Throw: SPDT
Light Color: Red
Head Shape: Flat Round
Max Switch Rating: AC 5A/250V
Light Power: 220V
Terminal Type: Solder
Terminal Quantity:5
Weight:16g
Body Material: Stainless Steel (SS is much more resistant to wear and abrasion)
Button Material: Stainless Steel
Protection Rating: IP67
Operation Temperature: -20C to + 55C

Package Include:
1 x  Metal Button Switch

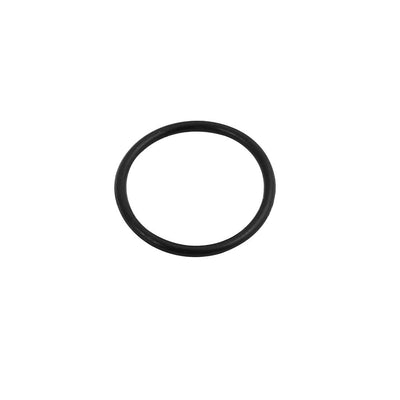

1 x  Rubber O-ring
Warning: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
